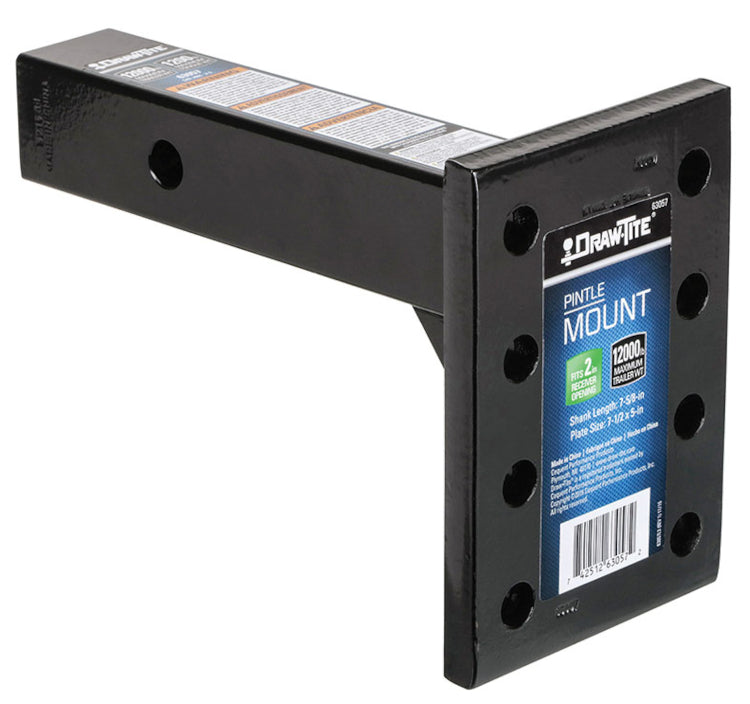

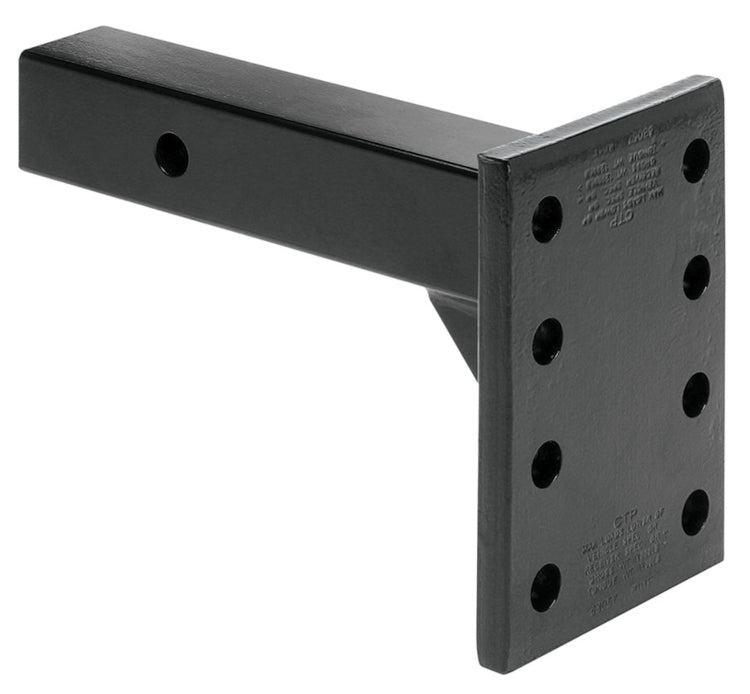

REESE Towpower pintle hook mounting plate allows for a pintle hook to be easily bolted-on. Most simply slide into a 2 In. receiver tube and secure with a pin and clip. Black powder coat finish provides a clean appearance, and prevents weathering.
-
Converts receivers for use with pintle-type trailers, quickly and easily
-
Provides mounting for both ball and pintle and rigid type-pintle hooks
-
Pin and clip must be ordered separatelyy
Brand:
DRAW-TITE
Part Number:
63057
Warranty:
Limited Lifetime
UPC:
742512630572
Dimensions:
8. 4" x 12. 4" x 5. 4" (Shipping)
Finish:
Black Powder Coat
Weight:
19. 7 lbs
Pin Diameter:
0. 625 in.
Drop Length:
3. 5 in.
Receiver Size:
2 in.
Shank Diameter:
2 in.

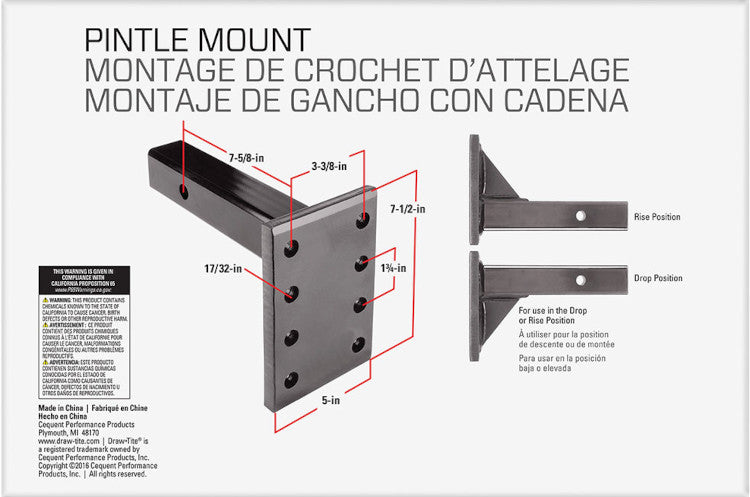

Plate Size:
7. 5 in. x 5 in.
Capacity:
12, 000 lbs.
Tongue Weight:
1, 200 lbs.
Draw Bar Maximum Length:
7. 625 in.
Shank Length:
7. 625 in.
Color:
Black
Ball Capacity:
N/A
Ball Diameter:
N/A
Hook Capacity:
N/A
Drilling Required:
No
Mounting Hardware Included:
YES
Classification:
Pintle Hook Mounting Plate
Attachment Location:
Receiver Hitch
Mounting Type:
Receiver Hitch
Material:
Steel
Receiver Included:
Yes
Length:
7-5/8 in.
Drop:
7-1/2 in.
Rise:
5 in.
Hole Size:
4 in.
