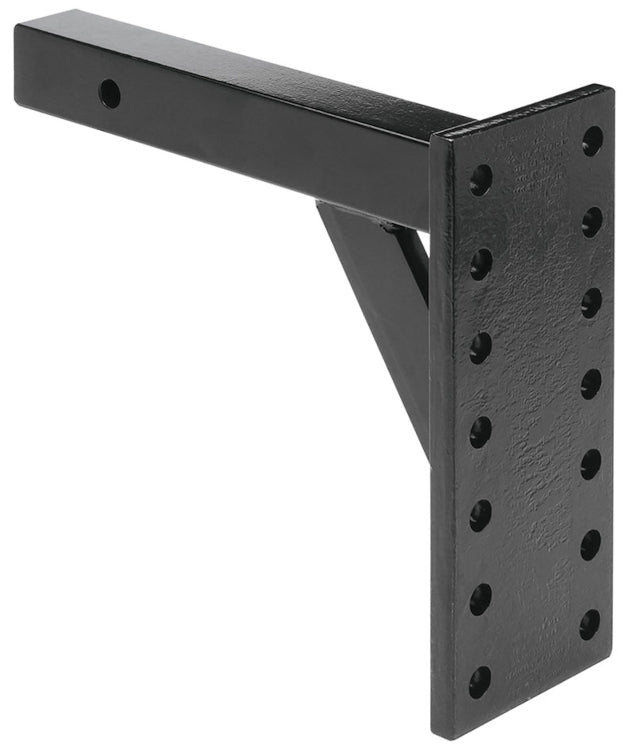

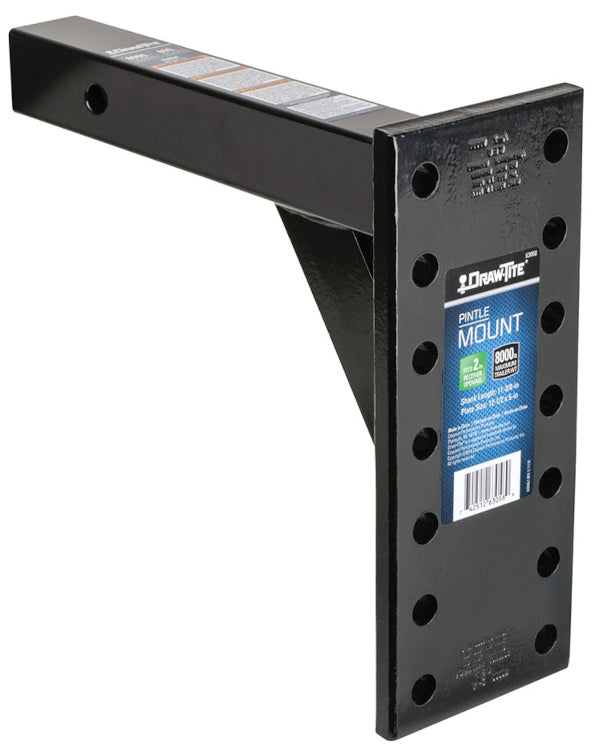

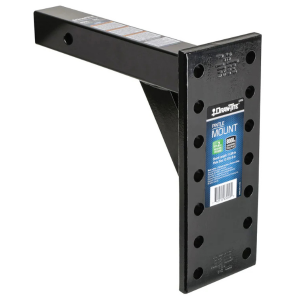

REESE Towpower pintle hook mounting plate allows for a pintle hook to be easily bolted-on. Most simply slide into a 2 In. receiver tube and secure with a pin and clip. Black powder coat finish provides a clean appearance, and prevents weathering.
-
Converts receivers for use with pintle-type trailers, quickly and easily
-
Provides mounting for both ball and pintle and rigid type pintle hooks
-
Pin and clip must be ordered separately
|
Brand:
|
DRAW-TITE
|
|
Part Number:
|
63058
|
|
Warranty:
|
Limited Lifetime
|
|
UPC:
|
742512630589
|
|
Dimensions:
|
5" x 15" x 12" (Shipping)
|
|
Finish:
|
Black Powder Coat
|
|
Weight:
|
30.95 lbs
|
|
Pin Diameter:
|
0.625 in.
|
|
Drop Length:
|
8.75 in.
|
|
Receiver Size:
|
2 in.
|
|
Shank Diameter:
|
2 in.
|
|
Plate Size:
|
12.5 in. x 5 in.
|
|
Capacity:
|
8,000 lbs.
|
|
Tongue Weight:
|
800 lbs.
|
|
Draw Bar Maximum Length:
|
11.375 in.
|
|
Shank Length:
|
11.375 in.
|
|
Color:
|
Black
|
|
Ball Capacity:
|
N/A
|
|
Ball Diameter:
|
N/A
|
|
Hook Capacity:
|
N/A
|
|
Drilling Required:
|
NO
|
|
Mounting Hardware Included:
|
YES
|
|
Classification:
|
Pintle Hook Mounting Plate
|
|
Attachment Location:
|
Receiver Hitch
|
|
Mounting Type:
|
Receiver Hitch
|
|
Material:
|
Steel
|
|
Receiver Included:
|
Yes
|
|
Length:
|
11-5/8 in.
|
|
Drop:
|
12-1/2 in.
|
|
Rise:
|
5 in.
|
|
Hole Size:
|
7 in.
|
