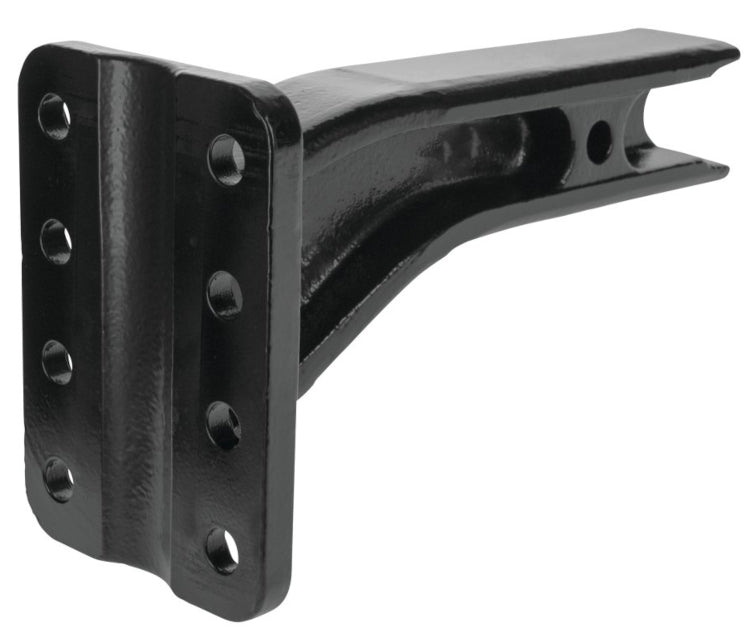

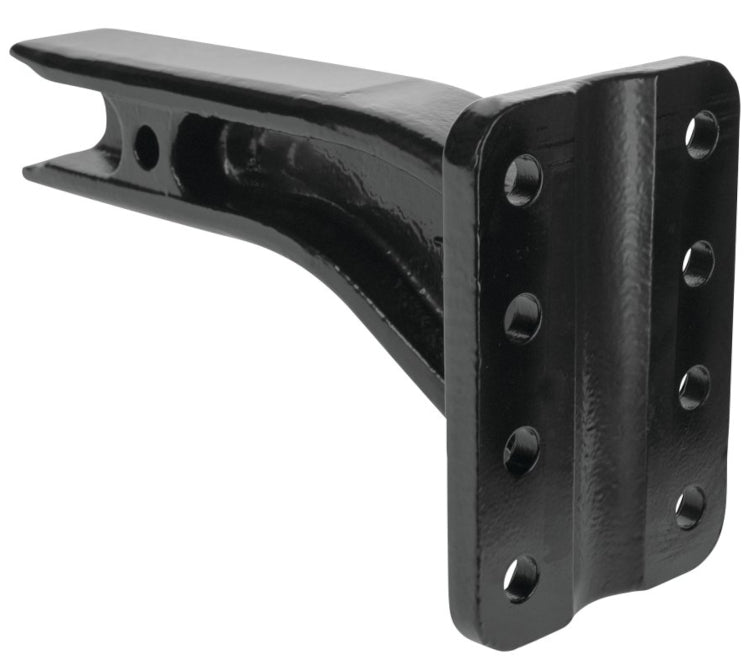

The REESE titan receiver pintle hook mounting plate is designed to fit exclusively with titan receivers that have a 2-1/2 In. x 2-1/2 In. hitch box opening. The mount hole spacing is 3-3/8 In. left to right and 1-3/4 In. top to bottom.
-
Converts receivers for use with pintle-type trailers, quickly and easily
-
Provides mounting for both ball and pintle and rigid type pintle hooks
-
Pin and clip must be ordered separately
|
Brand:
|
DRAW-TITE
|
|
Part Number:
|
45294
|
|
Warranty:
|
Limited Lifetime
|
|
UPC:
|
016118072136
|
|
Dimensions:
|
8.13" x 13.56" x 5.56" (Shipping)
|
|
Finish:
|
Black Powder Coat
|
|
Weight:
|
19 lbs
|
|
Pin Diameter:
|
0.625 in.
|
|
Drop Length:
|
3.5 in.
|
|
Receiver Size:
|
2-1/2 in.
|
|
Shank Diameter:
|
2-1/2 in.
|
|
Plate Size:
|
6 in. x 5 in.
|
|
Capacity:
|
18,000 lbs.
|
|
Tongue Weight:
|
2,000 lbs.
|
|
Draw Bar Maximum Length:
|
8-1/2 in.
|
|
Shank Length:
|
8-1/2 in.
|
|
Color:
|
Black
|
|
Ball Capacity:
|
N/A
|
|
Ball Diameter:
|
N/A
|
|
Hook Capacity:
|
N/A
|
|
Drilling Required:
|
No
|
|
Mounting Hardware Included:
|
No
|
|
Classification:
|
Pintle Hook Mounting Plate
|
|
Attachment Location:
|
Receiver Hitch
|
|
Mounting Type:
|
Receiver Hitch
|
|
Material:
|
Steel
|
|
Receiver Included:
|
Yes
|
|
Length:
|
8-1/2 in.
|
|
Drop:
|
7-1/4 in.
|
|
Rise:
|
5 in.
|
|
Hole Size:
|
4 in.
|
