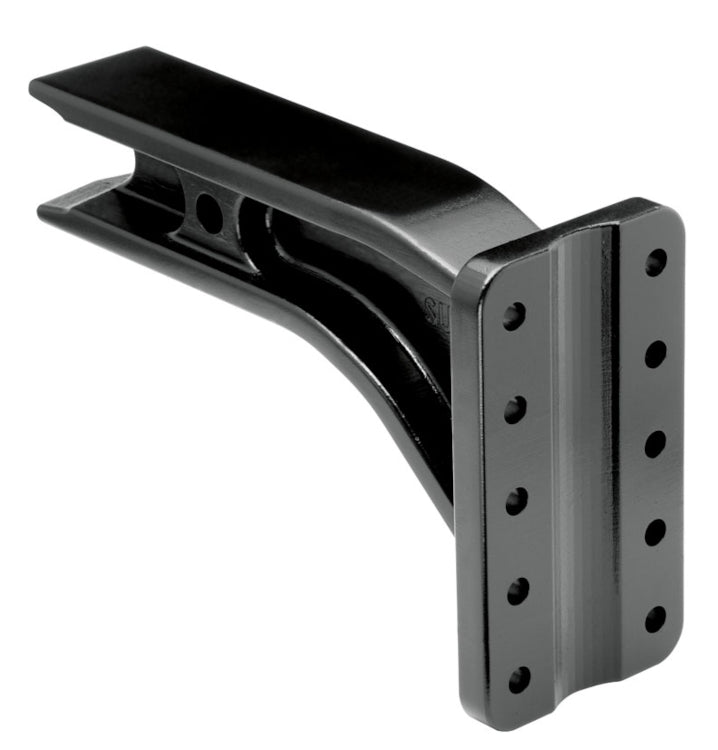

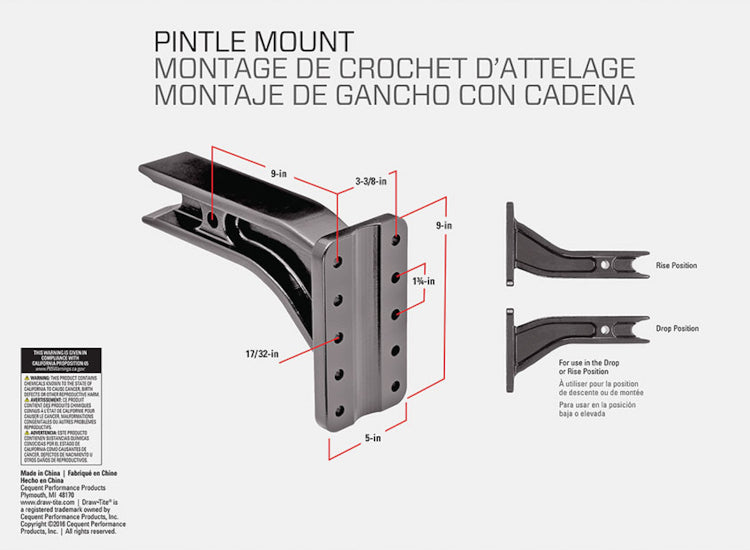

The REESE titan receiver pintle hook mounting plate is designed to fit exclusively with titan receivers that have a 3 In. hitch box opening. The mount hole spacing is 3-3/8 In. left to right and 1-3/4 In. top to bottom.
-
Designed for Draw-Tite Heavy Duty 3" receivers (38XXX Series)
-
Converts 3" receivers for use with pintle-type trailers, quickly and easily
-
Provides mounting for both ball and combo pintle hooks
-
Unique pin and clip must be ordered separately (3/4" hitch pin diameter required)
|
Brand:
|
DRAW-TITE
|
|
Part Number:
|
38186
|
|
Warranty:
|
Limited Lifetime
|
|
UPC:
|
016118072143
|
|
Dimensions:
|
14" x 9" x 5" (Shipping)
|
|
Finish:
|
Black Powder Coat
|
|
Weight:
|
31.55 lbs
|
|
Pin Diameter:
|
0.75 in.
|
|
Drop Length:
|
5.25 in.
|
|
Receiver Size:
|
3 in.
|
|
Shank Diameter:
|
3 in.
|
|
Plate Size:
|
9 in. x 5 in.
|
|
Capacity:
|
25,000 lbs.
|
|
Tongue Weight:
|
4,000 lbs.
|
|
Draw Bar Maximum Length:
|
9 in.
|
|
Shank Length:
|
9 in.
|
|
Color:
|
Black
|
|
Ball Capacity:
|
N/A
|
|
Ball Diameter:
|
N/A
|
|
Hook Capacity:
|
N/A
|
|
Drilling Required:
|
No
|
|
Mounting Hardware Included:
|
No
|
|
Classification:
|
Pintle Hook Mounting Plate
|
|
Attachment Location:
|
Receiver Hitch
|
|
Mounting Type:
|
Receiver Hitch
|
|
Material:
|
Steel
|
|
Receiver Included:
|
Yes
|
|
Length:
|
9 in.
|
|
Drop:
|
9 in.
|
|
Rise:
|
5 in.
|
|
Hole Size:
|
5 in.
|
