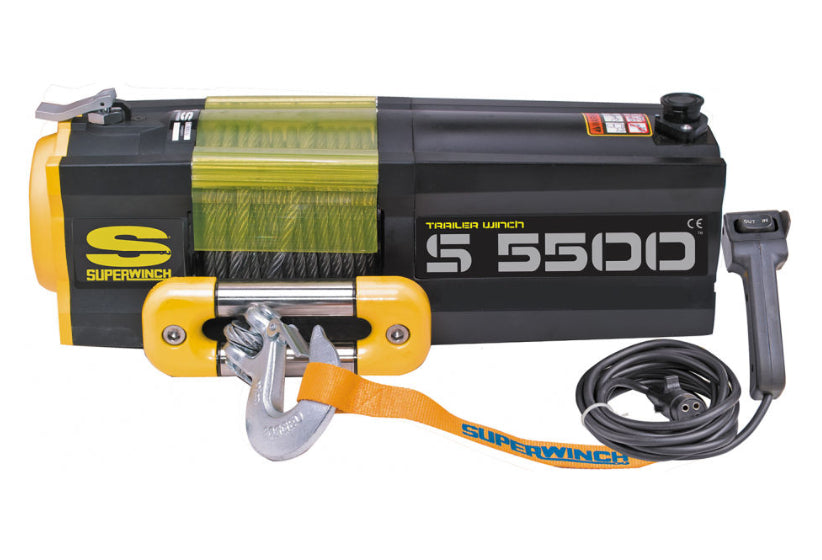

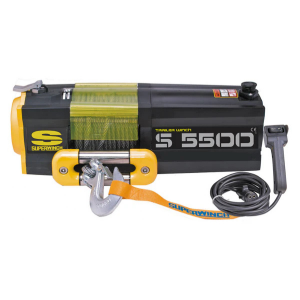

The S Series from Superwinch is the most popular performance trailer winch on the market and with good reason. With race proven reliability, S Series winches have full metal gears, powerful motors, an integrated sealed switching solenoid, and a rugged hand-held remote. Full metal gears deliver power and performance. Preferred by the professionals for safe, dependable loading. Instant stop design ensures absolutely no coasting. Lever operated clutch simplifies fast wire rope payout. S3 Solenoid is submersible, sealed and comes with an exclusive 3-year warranty. Other standard features include power IN and OUT, free-spooling drum, mechanical and dynamic braking, and roller fairlead. The fully enclosed housing helps keep the weather out.
- Winch Rating: 5500 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 60 Feet
- Line Material: Steel
- Mounting Pattern Size: 6 Inch Length X 4-1/2 Inch Width
- Brake Type: Dynamic
- Max Amp Draw: 430 Amp Draw At 5500 Pound
- Gear Reduction Ratio: 159:1
- Includes Mounting Hardware: Yes
- Thermal Shutoff: No
- Color: Black
- Motor Horsepower: 3.6 Horsepower
- Fairlead Type: Roller
- Remote Type: Wired
- Electrical Control Type: Solenoid With Circuit Breaker Protection
- Motor Type: Permanent Magnet
- Drive Gear Type: Planetary
- Line Diameter (IN): 9/32 Inch
- Mounting Hole Quantity: 4
- Drum Material: Steel
